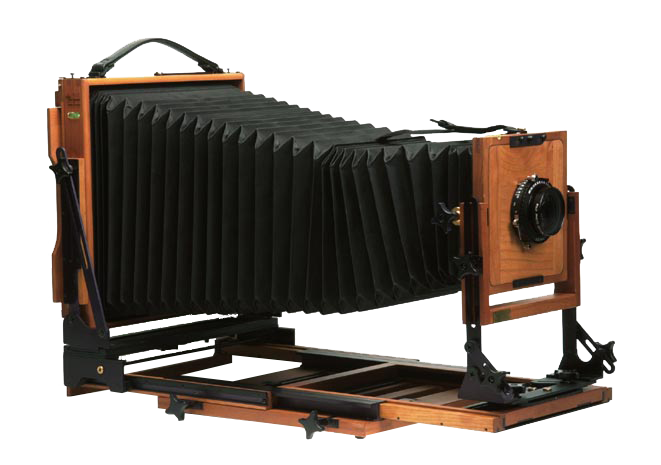

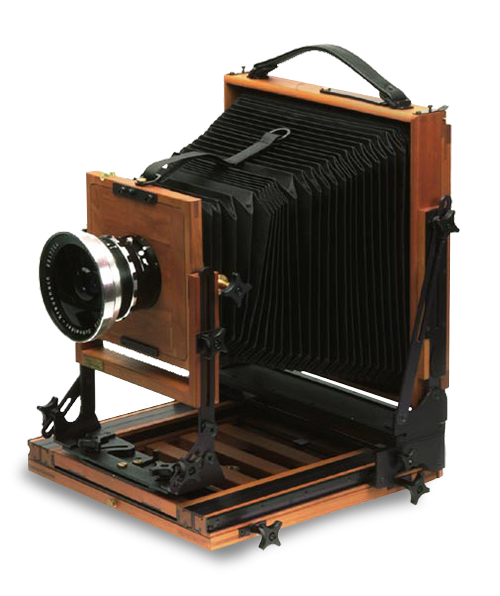

8x10" - The Lotus Rapid Field

Specifications
Front axis tilt	Limited only by the bellows
Front base tilt	40° forward/ 90° back
Front swing	+/- 30°
Front rise and fall	126 mm
Front lateral shift	130 mm
Back base tilt	30° back/ 90° forward
Back axis tilt	Special order
Back swing	+/-17 °
Back rise and fall	Total 100 mm
Back shift	+/-150 mm
Groundglass	With grid
Groundglass frame	Interchangeable between upright and transverse size
Bellows changeable	yes
Maximum bellows draw	945 mm
Minimum bellows draw	130 mm
Finish of wood	Oiled and waxed
Lensboard	Deardorff-Type (6×6″ with rounded corners) or custom design. Adapters for Technika style boards are available.
Tripod thread	3/8″
Weight without lens	5,1kg
Net price	on request
