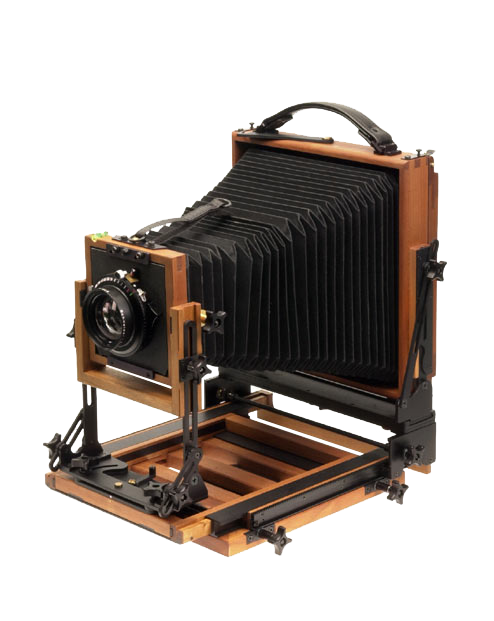

5x7" - The Lotus Rapid Field

Specifications
Front axis tilt	Limited only by the bellows
Front base tilt	35° forward/ 90° back
Front swing	54°
Front rise and fall	92 mm
Front lateral shift	110 mm
Back base tilt	30° back/ 90° forward
Back axis tilt	Special order
Back swing	36°
Back rise and fall	Total 65 mm
Back lateral shift	Total 200 mm
Groundglass	With grid for 6 x 6 up to 6 x 12 cm format
Groundglass frame	Interchangeable between upright and transverse size
Bellows changeable	yes
Minimum bellows draw	100 mm
Maximum bellows draw	680 mm
Finish of wood	Oiled and waxed
Lensboard	Technika style or custom design
Tripod thread	3/8″
Weight without lens	2,9 kg
Net price	on request
